Ever tried lifting a heavy load and gave up eventually?

We have all been there. If lifting and hauling is a regular part of your job, you must be familiar with winches, the magic machine that can carry everything.

You probably own one too and know how to operate it.

But knowing how to maintain a machine is as important as knowing how to operate it. And you can ensure the best care of your device by understanding how it works so you can avoid any probable damage.

So, if you’ve ever wondered, How does a hydraulic winch work?

We are here to answer your question.

Must-Have Winch Tools

Firstly, it is essential to know how you can turn your ordinary machine into extraordinary while ensuring the best care.

This machine is just a simple tool for pulling and hauling mechanisms. But by adding some handy accessories, you can turn this device into a versatile tool for enhanced performance.

Moreover, these items will also ensure added safety while operating.

So, let us take a look at some of the vital as well as optional components that you can use to make your machine flexible and safe.

D-Shackles

This handy tool is perfect for attaching the looped ends of cables, wires, snatch blocks, and straps.

It also ensures added safety, and you won’t have to sweat about your load falling off mid-operation.

Besides, the shackles feature a small pin that ensures convenient removal. However, this is an optional tool; you can work without this if you do not have one.

Hand Gloves

Safety gloves are an undoubtedly vital accessory that every winch operator should consider wearing.

Often through regular use, the wires develop barbs, which can penetrate your skin and cause inconvenience.

Besides, the cable or wire speed can also slice your skin if you work with bare hands.

Hence, it would be best if you always put on protective gloves before handling wires.

Moreover, to ensure safety at all times, it is essential to avoid loose-fitting clothes. It is crucial to be careful about wearing anything that can get entangled with the tow line.

Hook Strap

While spooling the tow line into the drum, these devices develop extreme pulling speed.

The spooling pressure can remove your fingers or limbs if they accidentally come in contact with the line.

Hence, this hook strap keeps your fingers away from the fairlead while reeling. You can attach the belt with the loop and hold it instead of the circle itself.

So, to ensure maximum protection, this accessory is a must-have.

Tow Hooks

Using this tool, you can ensure an extra attachment point for your hooks, chains, and straps.

This tool is handy for towing vehicles like cars, trucks, or jeeps. It is an optional accessory but can provide added convenience while working.

Heavy Blanket

Regular use can make the tow line or wire frayed and easily breakable. A sudden break of the steel cable can cause massive accidents during operation.

Heavy blankets are useful to reduce the tension of the tow rope in these types of situations.

These blankets, also called quilted movers blankets, can absorb energy if the wire tears or breaks, reducing accidents.

Place it on the tow line between the anchor and the winch.

Be sure to put the blanket on before starting the machine. It would also help if you never approached or tried to move the wire while the engine is still on.

Turn off the machine before moving or removing the quilt.

Back up Parts

If you travel a lot or your job demands location changes. Back-up parts can save your day if you fall short of any components.

You can include an extra snatch block, screw pin shackle, and additional wire rope and hooks.

All these classic auto parts are widely available online.

How Does a Winch Work?

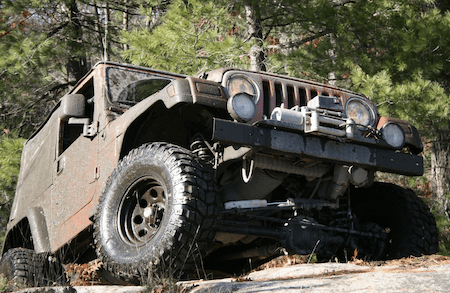

how winch works

Now that you have an idea of some of the components of a winch, we can dive deeper and talk about this machine’s operation procedure.

Almost all winches give the same output, which is pulling and lifting heavy objects. But, not all of them work the same way.

Different types of winches run using different energy sources. Some even work manually and do not require additional power.

Let us look at how various types of hoists work and some of their benefits and features.

Electrical Winch

Have you ever wanted a robot that would carry stuff for you while you sit and give orders?

Well, this machine does exactly that. It might not have hands and legs like a robot, but it sure has a hook and an anchor.

Features

One great benefit of this machine is that it is effortless to install and operate. There is no need for any extra components to finish the set-up process. This machine runs using power from a battery source.

Hence, all you have to do is connect it to a vehicle’s battery or generator.

Besides, this machine works faster than other winches.

So, you can get your work done quickly within time. Another added advantage is that it is easy to carry travel with this machine without any hassle.

Downsides

As many benefits this machine offers, it also has some downsides. This device tends to heat up quickly, so it is not fit for continuous use with no break time.

Moreover, electrical hoists cannot carry weighty loads. So, if your job requires carrying hefty equipment, you should consider using other types of pulling machines.

How Electrical Winches Work?

Electrical winches draw power from the battery of a vehicle or generator. Some machines come with in-built batteries.

This machine comes with a winch motor that consists of coils. The set of coils have permanent magnets known as the stator.

The stator produces a magnetic field on opposite poles inside the engine.

Hence, the spinning magnet gives power to the motor, which makes the drum spin.

These machines are a popular choice for forestry, commercial mining, and the agricultural industry.

Hydraulic Winch

A hydraulic winch is considered the most powerful pulling and hauling machine. This device is capable of handling far more heavy-duty jobs than other types of devices.

Features

One of the best features of this machine is it does not depend on batteries like electrical winches. So, this is the perfect device if you want to save energy and reduce your electric costs.

Besides, hydraulic hoists also do not heat up after prolonged use. So, jobs that require continuous use of the machine can go for these.

Some of their projects are heavy-duty and long-term in marine industries that need non-stop performance of the device.

So, winch makes their job more comfortable because it can give service without breaktimes.

Moreover, you can also use a winch underwater. So for bridge construction projects, this device is the perfect fit.

Downsides

The operation and installation of this machine can be tricky. Most often, you might have to purchase extra components to finish the installation process.

Also, you need to have some knowledge and experience to operate this device. It consists of many switches, joysticks, and display control panels that can confuse a new user.

How Hydraulic Winches Work?

This machine functions using the hydraulic system of a vehicle and a specific fluid. The fluid is typically a particular oil.

This fluid pressure flows between the motor pump and the generator of the machine.

In some cases, the machine solely is not enough to lift a massive object. You can solve this problem by introducing a gear train that will enhance the performance of your device.

This gearbox will enable you to customize the speed limit of the spool drum and lifting.

Moreover, it will make the machine suitable for carrying heavier loads than the average weight.

Capstan Winch

A Capstan winch is famous for the unique benefits it provides. It does not work like a hydraulic or an electric winch with a source of energy or pressure.

Instead, it has its unique way.

Features

Unlike electrical hoists, this device does not have any heating issues. Hence you do not have to worry about motor stalls or accidents.

Moreover, since it does not run on an external power source, it is an energy-efficient machine. Another advantage is that the setting up procedure is also very simple and easy.

Also, you can use this machine without any hassle. So, if you are a traveler, you can go for this device instead of big hefty ones.

However, this machine is not suitable for heavy-duty jobs. You can only use it for light mining and forestry activities with limited weight lifts.

How Capstan Winch Works?

This machine has a cylindrical-shaped drum that rotates on a spindle. What sets it apart from other machines is that it does not store the cable or the wire in the drum.

So, virtually you will have an endless synthetic rope limit because this machine allows the wire to go through endlessly.

Besides, a lever or a crank usually remains attached to this machine. You can release or retract the tow line by rotating the lever.

Also, the drum rotates only anticlockwise, that is, one way.

So, when you lift a heavy object, the friction between the tow line and the drum transfers the load’s weight on the cable.

Hence, letting you pull or lift objects conveniently.

You can find more details on the working principles of Capstan winch in this post.

Hand Winch

A hand winch is the simplest form of winch-type. It is highly suitable for lightweight activities.

Uses

This machine is extremely lightweight and easy to carry. Hence, it is perfect for activities that require frequent movement from place to place.

Mostly, film industries use this device to set up their backgrounds to shoot different scenes. Besides, it is also suitable for the construction of stages for live performances.

Moreover, You can also use a hand winch for small-scale household lifting and hauling.

How Hand Winch Works?

The name itself suggests that it is a hand-operated machine. So, it works on muscle strength instead of battery power or fuel pressure.

This device features a lever or crank that enables easy pulling and lifting. The lever reels the tow rope into the spool when the machine lifts a heavy object.

It is essential to set the heavy object, the anchor, and the machine in a straight line. Otherwise, you might not be able to lift the load with full force.

 The next step is to wrap the anchor around a firm surface. Then you have to hook the winch to the belt and pull out the tow line. Now attach the hook to the object you want to carry and start lifting.

Make sure that the anchor end and the load ends are safely secured. Otherwise, you might face unwanted situations and damage the load or even hurt your hand.

Air Winch

An air winch works pretty much like every other lifting device. But it offers some benefits that make it more suitable for certain activities than other devices.

Features

This machine is the first choice when it comes to jobs in remote areas. Since it does not require any external mode of power to work, it is perfect for small environments.

Moreover, it is not affected by humidity, high temperature, or vapor. So, you can work with this device in any weather.

Be it summer, winter, or rainy season; a hand winch fits all weather types.

How Air Winch Works?

You will find all the standard components of a winch on this machine too. But its unique floating functionality makes it stand out from other devices. This function allows a weightless vertical movement.

Apart from that, it comes with traditional regulatory panels just like a normal machine.

This type of winches works on compressed air pressure rather than muscle power or electrical power.

The air pressure travel from the compressor to the motor, which then sets the machine in motion to lift heavy loads.

Final Words

Finally, we have gotten familiarized with the most common type of winches and their working procedure.

Hopefully, now you can confidently answer if someone ever asks how does a hydraulic winch works, or you can use this added knowledge to take better care of your machine.
